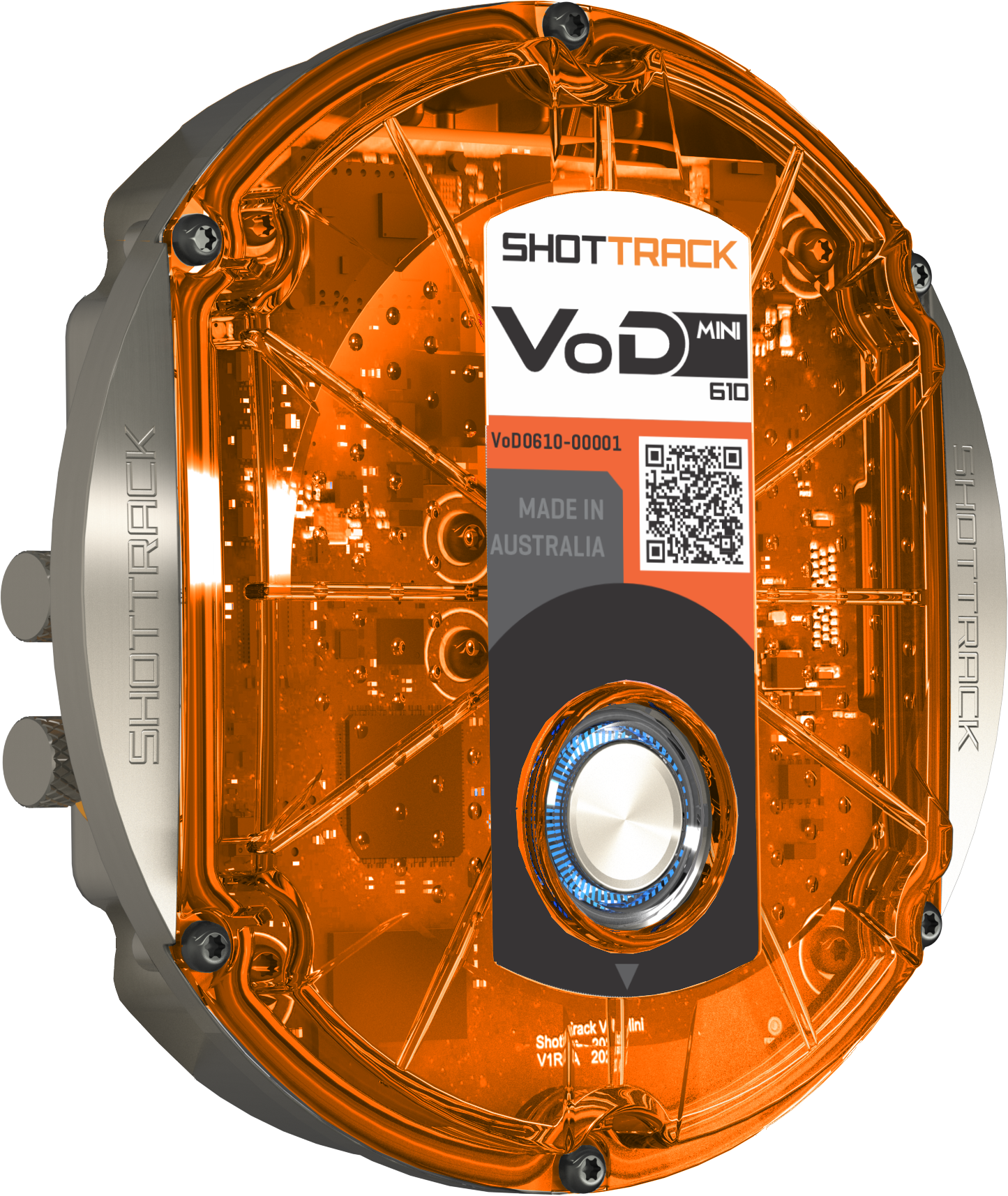

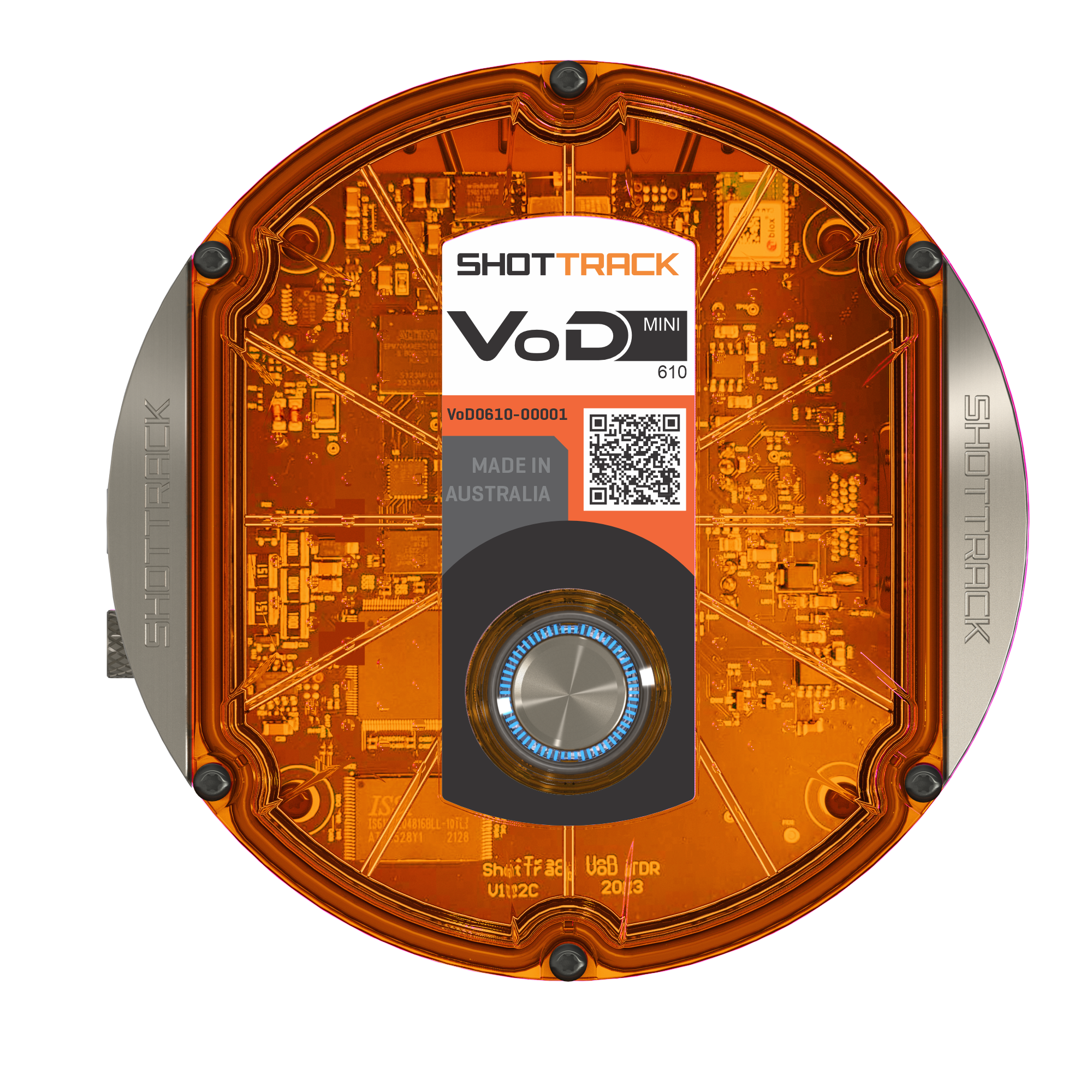

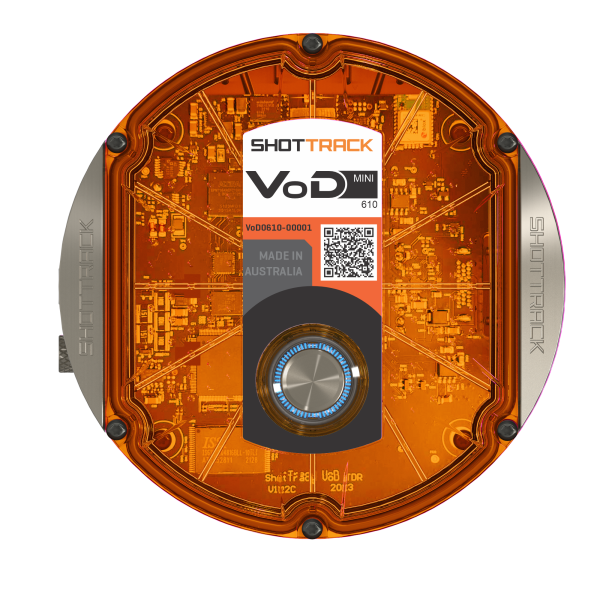

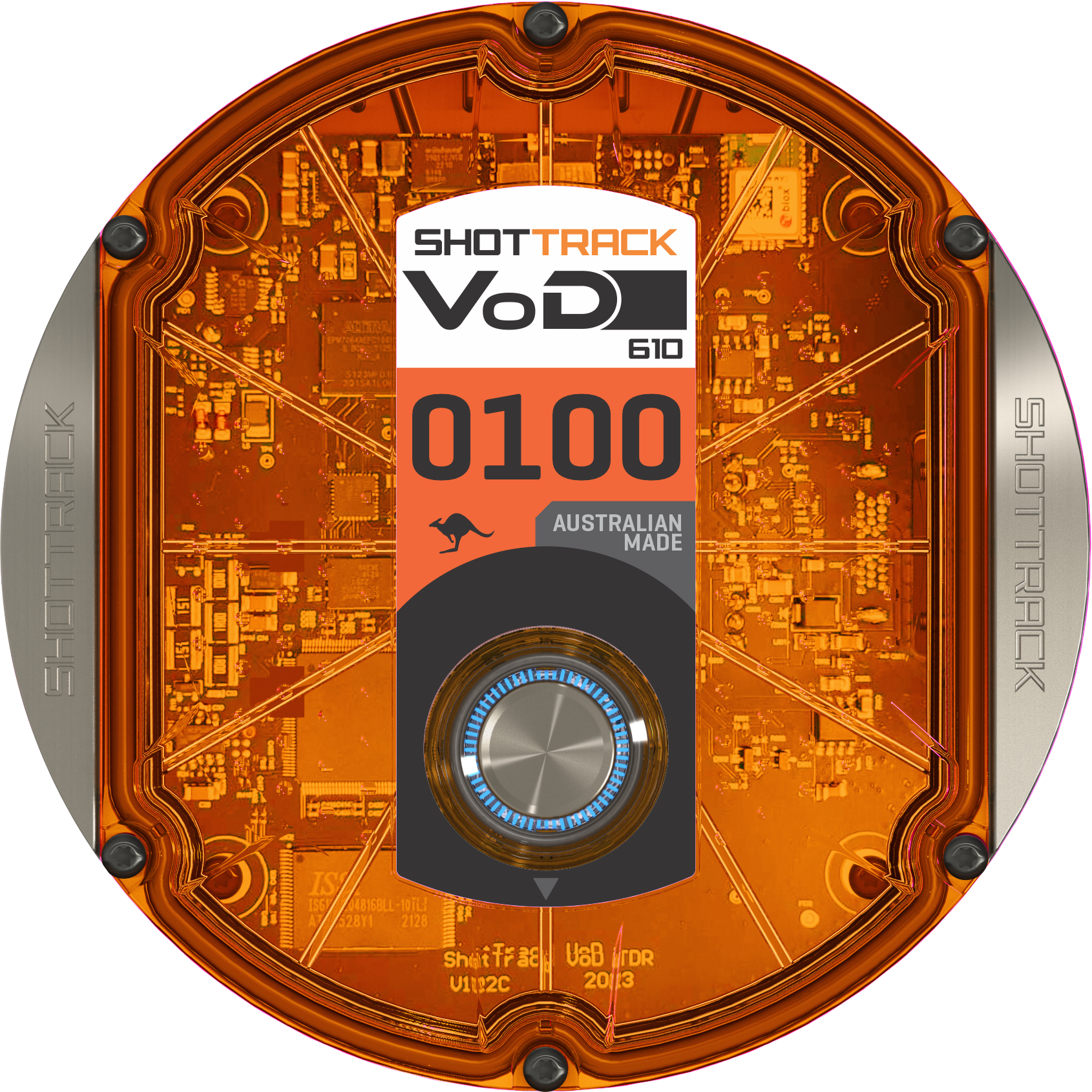

Introducing the ShotTrack VoD-610
The VoD-610 is our flagship Velocity of Detonation (VoD) monitor, setting a new benchmark for precision and versatility in blast analysis.

Now featuring a next-generation timer chip with higher resolution and exceptionally clean data output, the VoD-610 combines advanced performance with unmatched reliability.

The unit includes an automatic selectable front-end with adaptive sample rate control that switches to 8 µs (125 kHz) for cable lengths up to 610 m and 4 µs (250 kHz) for cable lengths up to 305 m. This automatic selection makes the VoD-610 suitable for open cut blasting, underground operations, and shorter column testing, increasing its versatility across a wide range of applications.

With 80 picosecond resolution, single-button operation, a rugged IP68-rated housing, GPS-synchronised timestamps, and full ShockAi platform integration, the VoD-610 delivers accuracy, simplicity, and portability in one complete system.

Engineered for performance and adaptability, the ShotTrack VoD-610 offers a powerful, user-friendly solution for modern blast monitoring.

Quick Quote

Add to Quote
Try our vibration calculator
  • Channels: Single channel time-domain reflectometer
  • Consumable Compatibility: Utilizes standard co-axial cable
  • Maximum Cable Length: Up to 610 meters
  • Pulse Output: Negative 6 volts
  • Sampling Rate: 125 KHz (8 µS per sample) with 610m of cable and 250KHz (4 µS) with 305m.
  • Operational Duration: Over 10 hours of continuous run time
  • Dimensions: 133mm in diameter, 36mm in height
  • Weight: 450 grams
  • User Interface: Multi LED status indicator for power on/off status
  • Resolution: 80 picoseconds
  • Measurement Range: Initial dead zone covers the first 50 meters of cable
  • Timing Accuracy: Equipped with GPS-synchronized timing
  • Durability: Enclosed in an IP-68 rated waterproof and dustproof case
  • Application: Ideal for VoD measurement in both on-site and research environments
  • Software Integration: Compatible with the ShockAi Control App for enhanced functionality
  • Ease of Use: Simplified operation with a single-channel design.
  • Cost-Effective Consumables: Uses readily available and affordable standard co-axial cables.
  • Compatibility: Accommodates standard reel sizes and is electronic detonator compliant.
  • Rapid Sampling: High sample rate minimizes data loss and captures finer details faster.
  • Portability: Compact and easy to transport to any site.
  • Lightweight Design: Easy to handle at just 450 grams.
  • User-Friendly Indicators: Features Bluetooth connectivity and visual indicators for SET and triggering.
  • Precision Measurement: Exceptionally high accuracy with a resolution of 80 picoseconds.
  • Extensive Measurement Capability: Utilizes a large portion of the cable effectively.
  • Accurate Timing: Offers precise GPS-synchronized timing and cross-referencing.
  • Durability: Built to be rugged and weatherproof for use in harsh environments.
  • Flexibility: Versatile enough for both research and practical field applications.
  • Convenience: Supports both in-office and on-site data downloading.
  • Smart Features: Equipped with automatic cable detection and a SET feature for enhanced operational efficiency.



  • ShotTrack VoD-610 Mini: Main device
  • Protective Black Carry Case: For secure transportation
  • Charger: To ensure your device is always ready for use
  • USB-C Cable: For device charging
  • Plug-in BNC Connector: Facilitates easy connectivity
  • Certificate of Origin: For FTA countries to verify authenticity (additional fee)
