ShotTrack VoD 305

VoD 305 – Velocity of Detonation Monitor | ShotTrack Pty Ltd

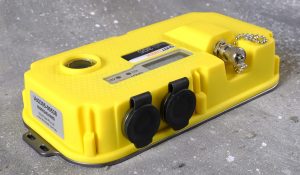

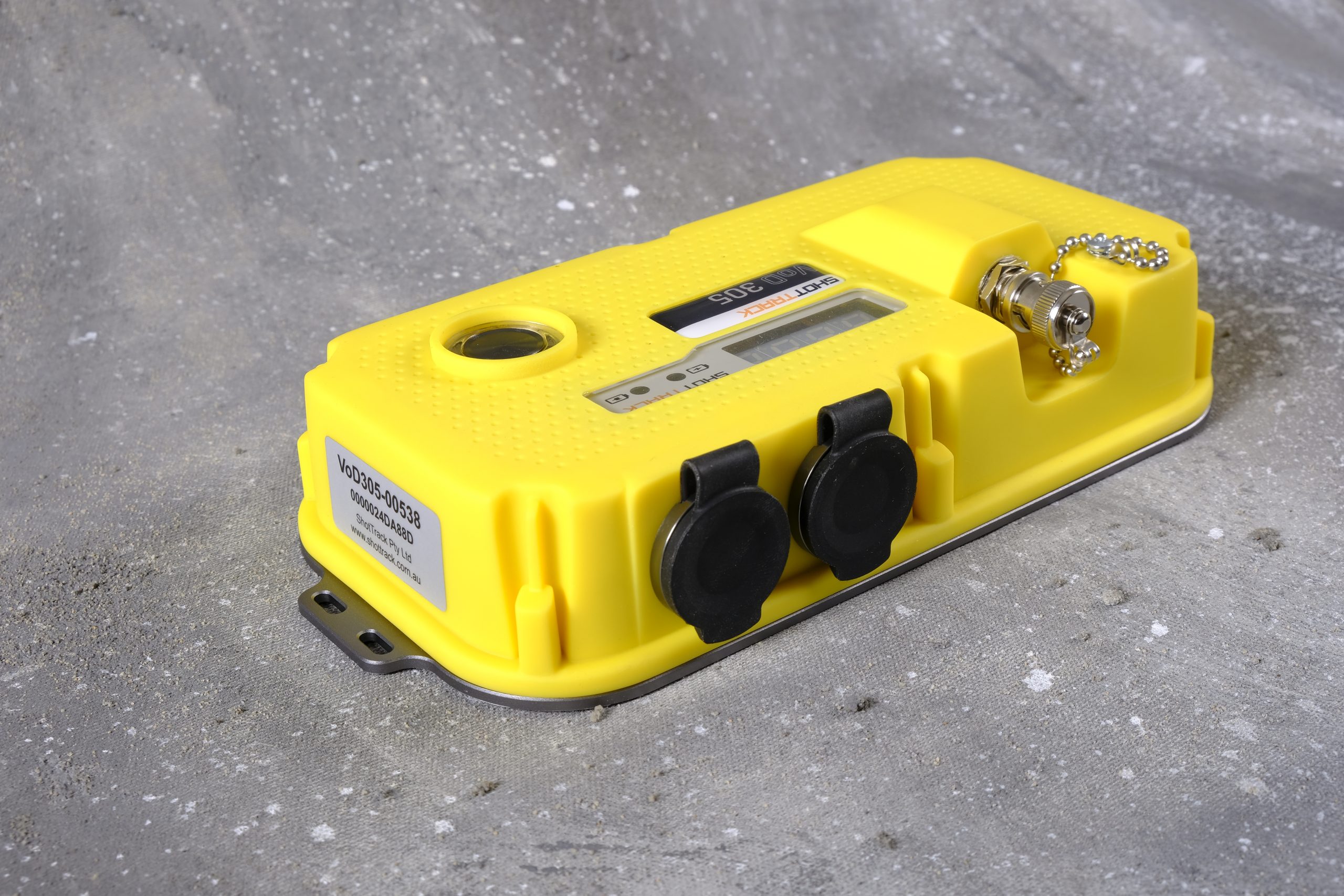

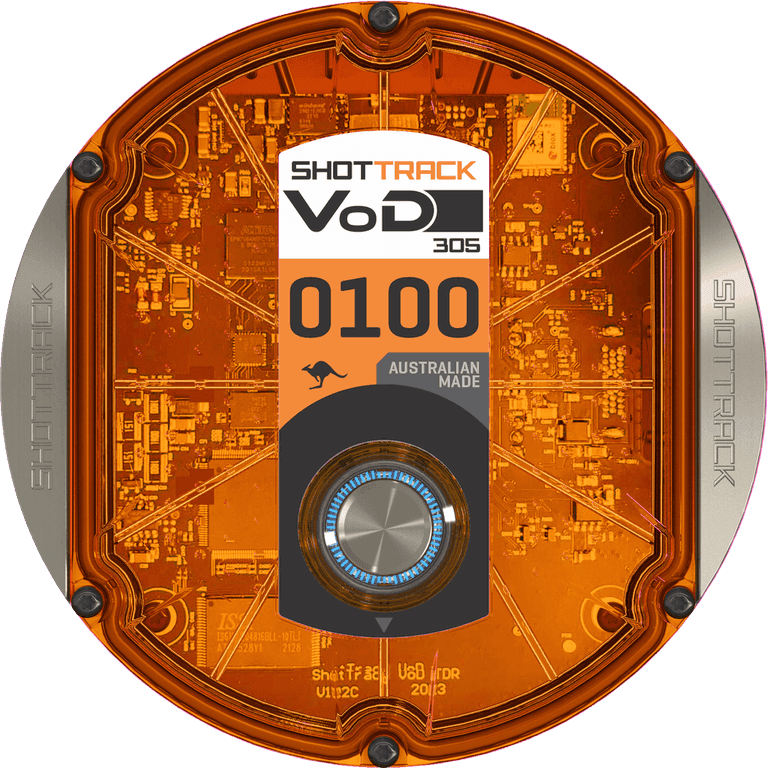

The ShotTrack VoD 305 represents the latest advancement in Velocity of Detonation (VoD) monitors, belonging to the next generation of this technology. With an impressive sample rate of under 4 microseconds and a nominal resolution of 90 picoseconds, it offers exceptional precision and accuracy. Encased in a compact IP 67-rated housing, the VoD 305 boasts a user-friendly single-button operation, ensuring ease of use. Additionally, its GPS-synchronized timestamp and long-range Bluetooth capability place it in a league of its own, further enhancing its functionality and versatility.

GET AN INSTANT QUOTE - SIGN UP HERE

To view our product pricing, submit a quotation request and purchase our products you must create an account.

  • One channel – Time-domain reflectometer
  • Consumable: Standard co-axial cable
  • Max cable length: 305m
  • Pulse type: Negative 6 volts
  • Sample rate: 256 KHz (3.9 µS)
  • Run Time: 8 hours +
  • Size: 18 x 7 x 4 cm
  • Weight: 1.2 Kg
  • Multi LED status indicator in ON/OFF
  • Resolution: nominally 90 picoseconds
  • Dead zone: First 50 meters of cable
  • Timing: GPS synchronized timing
  • IP 67 rated case
  • VoD measurement on site/research
  • USB or Bluetooth long
  • Simple, one channel use
  • Readily available and cheap
  • Standard reel size
  • Electronic Det compliant
  • Fast sample rate
  • Reduces loss of data due to delays
  • Small and portable
  • Light weight
  • Indicates Bluetooth/SET/triggered
  • High accuracy
  • Large portion of usable cable
  • Precise timing and cross referencing
  • Rugged and weather proof
  • Versatile
  • In the office or onsite data download
  • Automatic cable detection and SET feature

  • ShotTrack VoD 305 Unit
  • Software
  • 12 Month Warranty

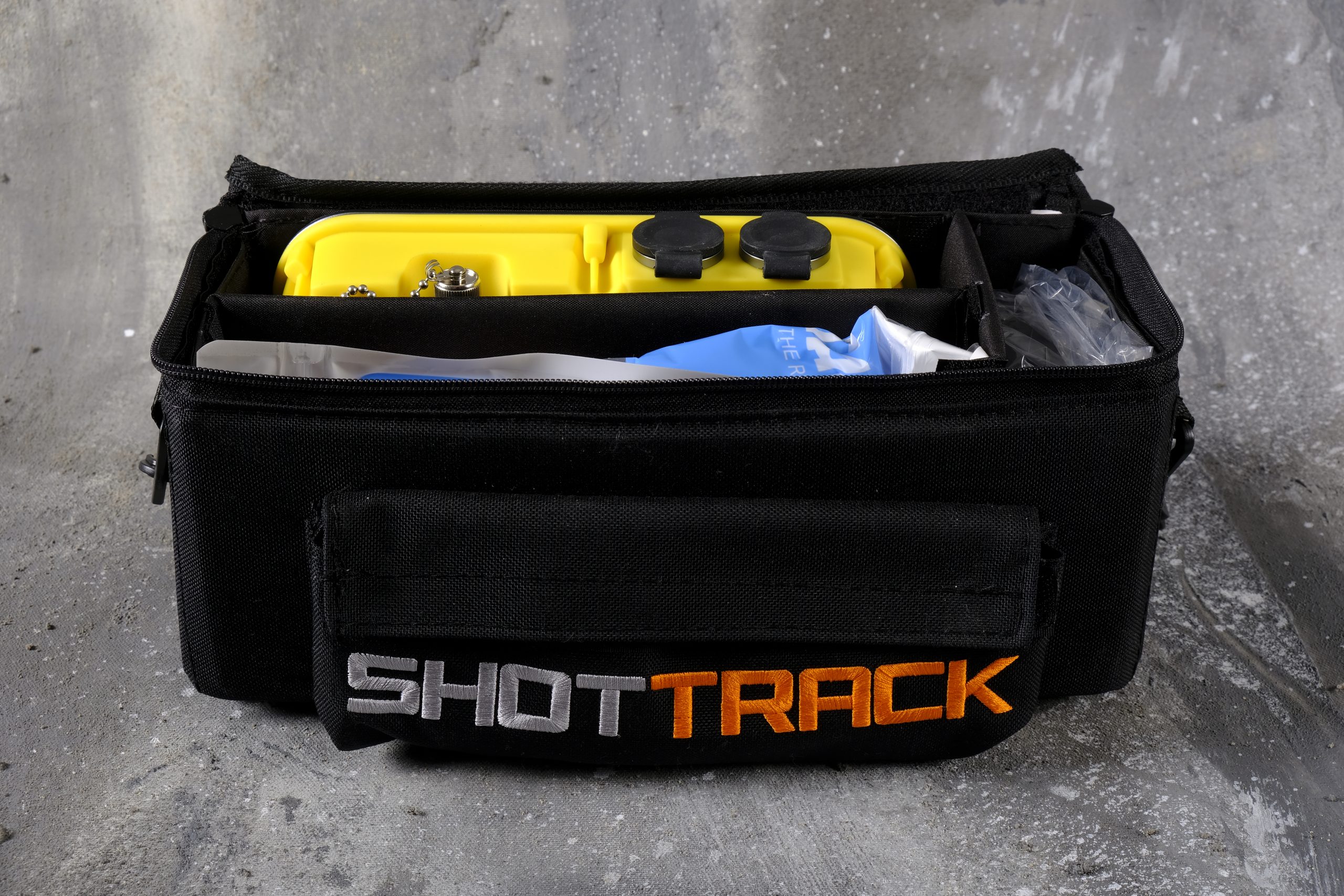

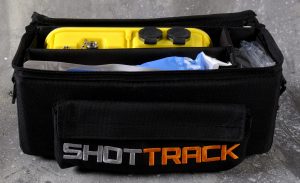

  • Black Carry Case
  • USB Cable
  • Universal Term Block BNC Connector x 2
  • Cable Strippers
  • Coaxial Cable Cutters
  • Pen multitool with ruler
  • Certificate of Origin (FTA Countries)
